Accessory
Accessory
Bellow&Compensator
Used to reduce vibration and shock, extend the life of valves and equipment, and improve control accuracy, and is suitable for high-pressure, frequent operation and large-size valve applications.

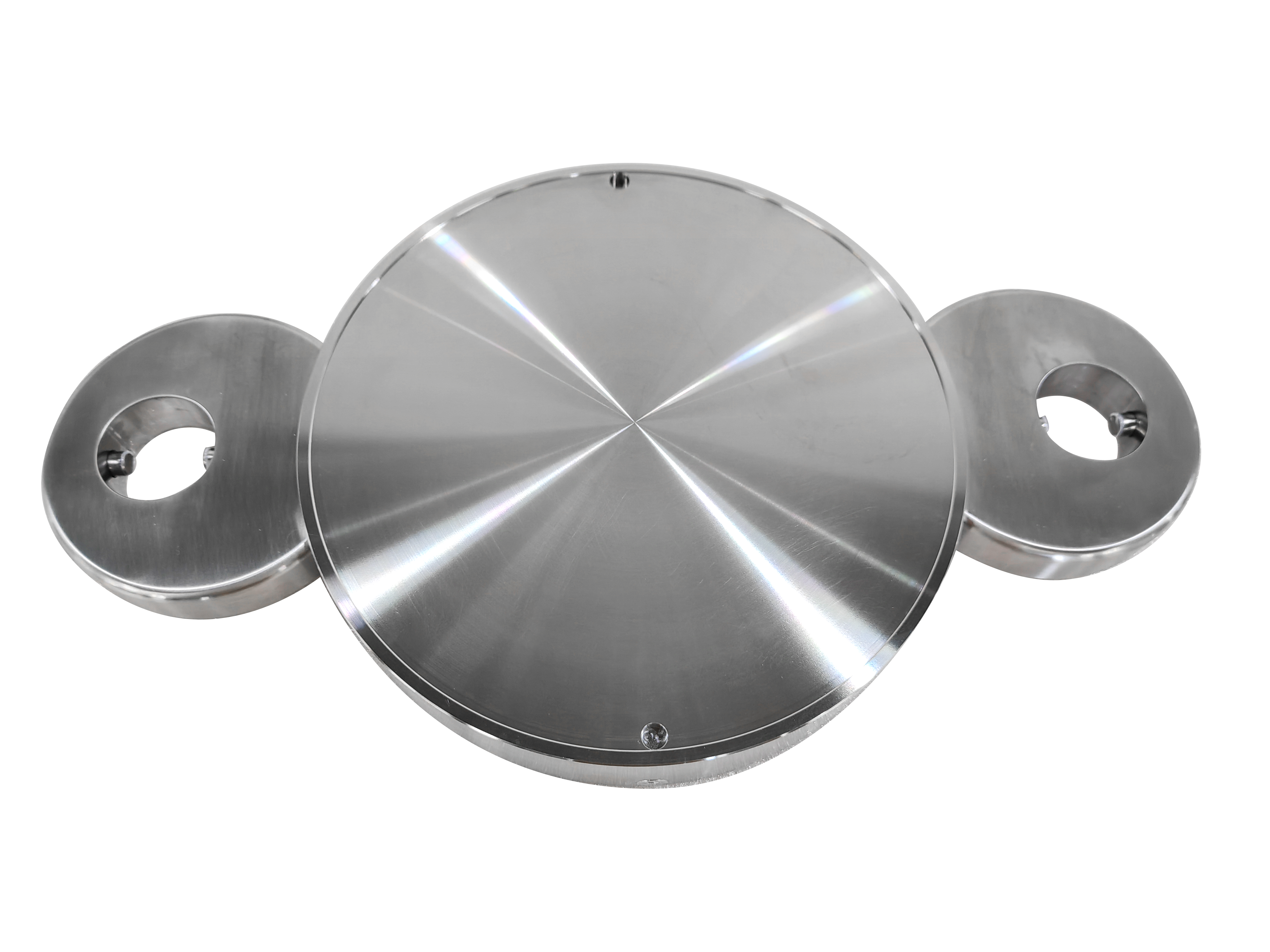

Passive Cover
Used to protect the valve from environmental aggressors, prevent misoperation, and extend the life of the valve
Active Cover
Used to protect the valve from environmental aggressors, prevent misoperation, and extend the life of the valve
Elastomer
material Option: EPDM/FKM/FFKM; Color Option: White/Black
Opening Tool for Passive Valve
Optional configuration for opening and closing the passive valve for cleaning.
Product | AIR AM | AIR AH | AIR AF | AIR AE | AIR AZ | FAB |
---|---|---|---|---|---|---|
Sizes | DN 050-DN 300 | DN 100 - DN 300 | DN 100 - DN 300 | DN 100 - DN 300 | DN 100 - DN 300 | DN 100 - DN 150 |
Containment performance | <1.0 μg/m³ | <1.0 μg/m³ | <1.0 μg/m³ | <1.0 μg/m³ | <1.0 μg/m³ | - |
Operation | Manual | Manual | Manual | Automatic | Automatic | Manual/ Automatic |
Process interface | Tri-Clamp/ Flange | Tri-Clamp/ Flange | Tri-Clamp/ Flange | Tri-Clamp/ Flange | Tri-Clamp/ Flange | Tri-Clamp/ Flange |
Product flow | Both directions | Both directions | Both directions | Both directions | Both directions | Both directions |
Material in contact with product (standard/customised material: Alloy59、HC276, etc.) | 1.4404/316L | 1.4404/316L | 1.4404/316L | 1.4404/316L | 1.4404/316L | 1.4404/316L |
Material not in contact with product (standard) | 1.4301/304 | 1.4301/304 | 1.4301/304 | 1.4301/304 | 1.4301/304 | 1.4301/304 |
Elastomers | EPDM/FPM/FFKM (each in white or black) | EPDM/FPM/FFKM (each in white or black) | EPDM/FPM/FFKM (each in white or black) | EPDM/FPM/FFKM (each in white or black) | EPDM/FPM/FFKM (each in white or black) | EPDM/FPM/FFKM (each in white or black) |
Cleaning | WIP/CIP | WIP/CIP | WIP/CIP | WIP/CIP | WIP/CIP | CIP/SIP |
