WIP
WIP
PW

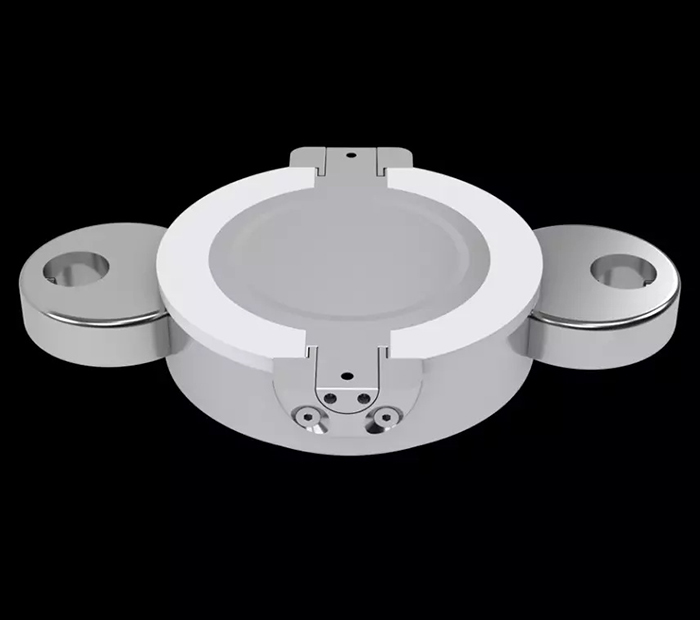

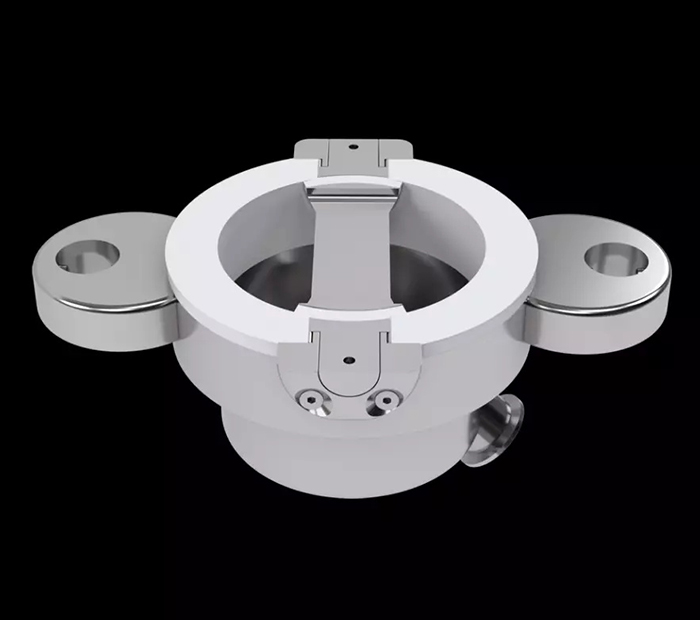

Passive washing valve with washing pot for cleaning the active valve. Optionally with WIP spray nozzles also in combination with extendable and retractable washing lances and various drain options.
AWZ

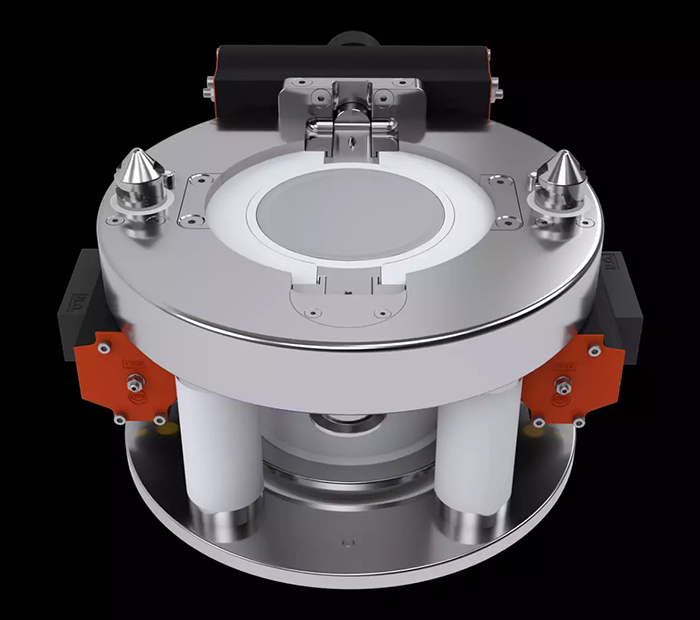

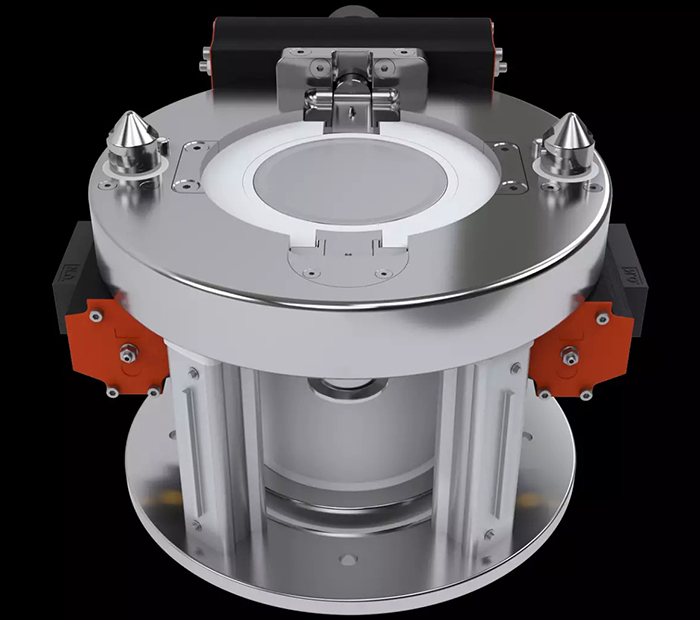

Active valve with active flange and pneumatic lifting device for cleaning the passive valve. Optionally with levers for manual operation or pneumatic actuators for automatic operation.
AWE

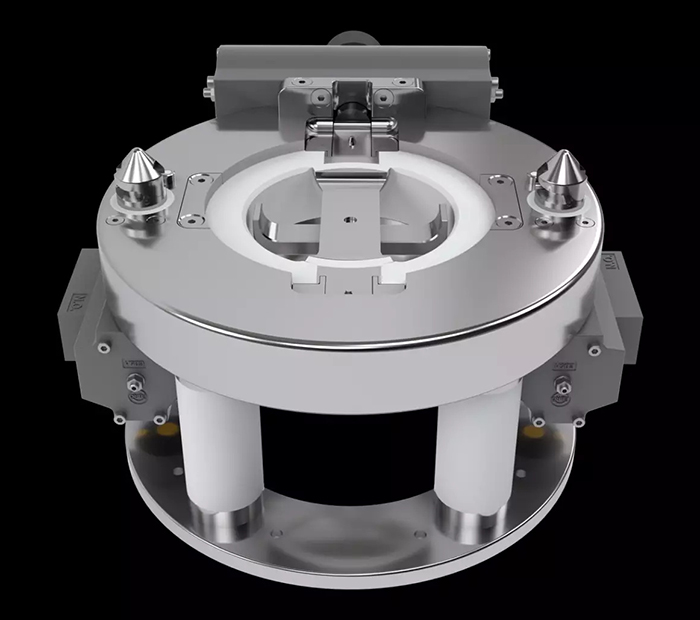

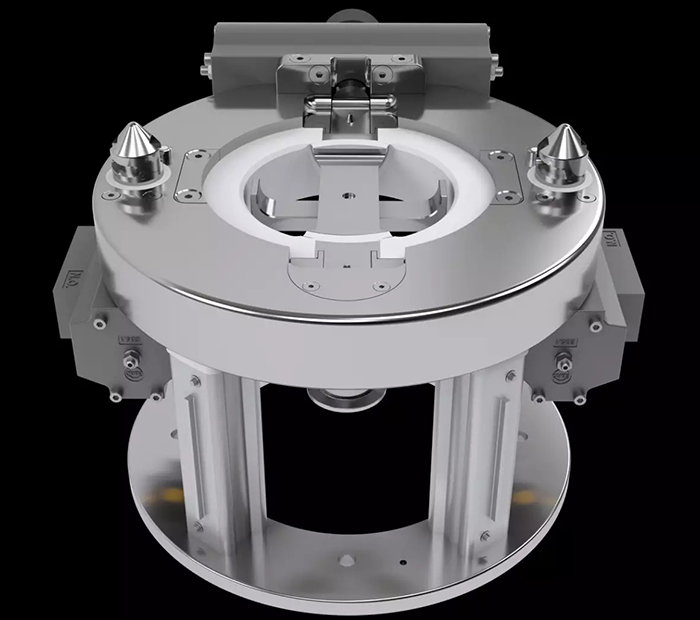

Active valve with active flange and flexible compensation dampers for cleaning of the passive valve. Optionally with levers for manual operation or pneumatic actuators for automatic operation.
AWM

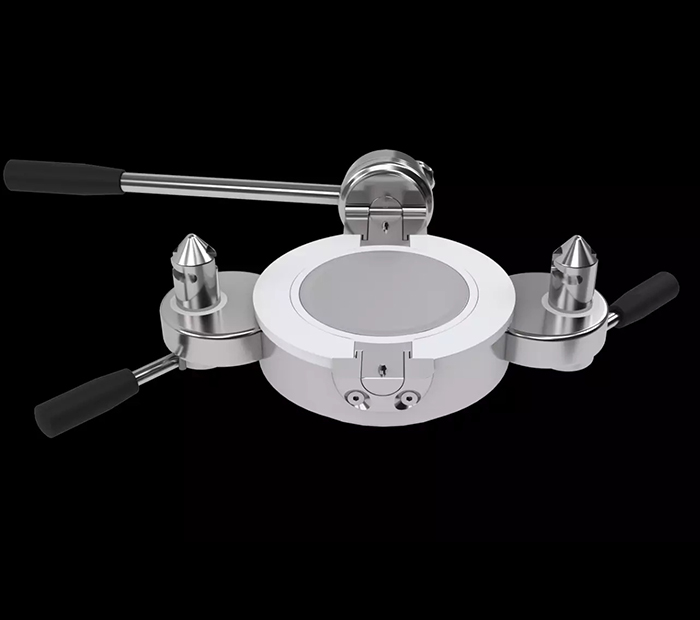

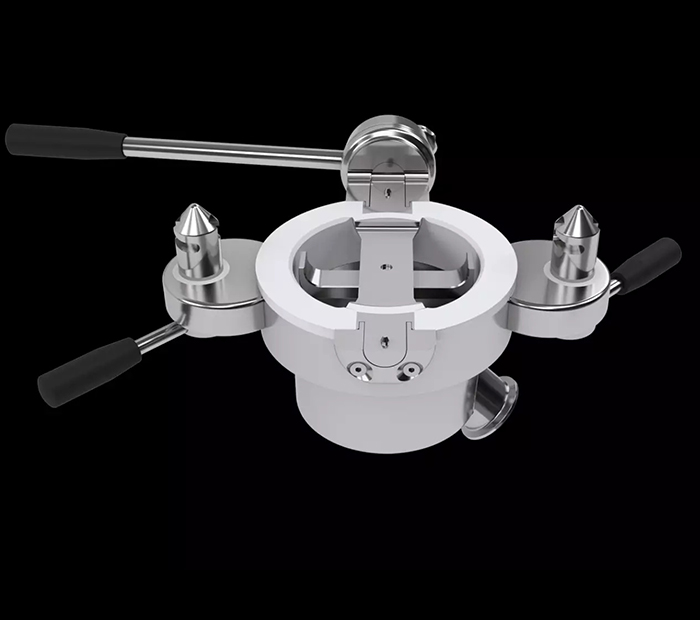

Active washing valve with hand levers for manual operation of cleaning the passive valve.
Product | AIR AM | AIR AH | AIR AF | AIR AE | AIR AZ | FAB |
---|---|---|---|---|---|---|
Sizes | DN 050-DN 300 | DN 100 - DN 300 | DN 100 - DN 300 | DN 100 - DN 300 | DN 100 - DN 300 | DN 100 - DN 150 |
Containment performance | <1.0 μg/m³ | <1.0 μg/m³ | <1.0 μg/m³ | <1.0 μg/m³ | <1.0 μg/m³ | - |
Operation | Manual | Manual | Manual | Automatic | Automatic | Manual/ Automatic |
Process interface | Tri-Clamp/ Flange | Tri-Clamp/ Flange | Tri-Clamp/ Flange | Tri-Clamp/ Flange | Tri-Clamp/ Flange | Tri-Clamp/ Flange |
Product flow | Both directions | Both directions | Both directions | Both directions | Both directions | Both directions |
Material in contact with product (standard/customised material: Alloy59、HC276, etc.) | 1.4404/316L | 1.4404/316L | 1.4404/316L | 1.4404/316L | 1.4404/316L | 1.4404/316L |
Material not in contact with product (standard) | 1.4301/304 | 1.4301/304 | 1.4301/304 | 1.4301/304 | 1.4301/304 | 1.4301/304 |
Elastomers | EPDM/FPM/FFKM (each in white or black) | EPDM/FPM/FFKM (each in white or black) | EPDM/FPM/FFKM (each in white or black) | EPDM/FPM/FFKM (each in white or black) | EPDM/FPM/FFKM (each in white or black) | EPDM/FPM/FFKM (each in white or black) |
Cleaning | WIP/CIP | WIP/CIP | WIP/CIP | WIP/CIP | WIP/CIP | CIP/SIP |
